Lipo Battery Pack 3.7V 1.3AH Battery With Wire And Connector For Massager
Specification for Lipo Battery Pack 3.7V 1.3AH battery with wire and connector for massager
| No. | Item | Rated Performance | Remark |
| 1 | Rated Capacity | Minimum | 1300mAh | Standard discharge(0.2C
C5A) after Standard charge |
| 2 | Nominal Voltage | 3.7V | Mean Operation Voltage
During Standard Discharge
After Standard Charge |
| 3 | Voltage at end of
Discharge | 3.0V | Discharge Cut-off Voltage |
| 4 | Charging Voltage | 4.2±0.03V | |
| 5 | AC (1KHz) Impedance
New Cell Max.(mW) | ≤50mΩ | |
| 6 | Standard charge | Constant Current 0.5C5A
Constant Voltage 4.2V
0.01 C5A cut-off | Charge time : Approx 4.0h |
| 7 | Standard discharge | Constant current 0.2 C5A
end voltage 3.0 V | |
| 8 | Fast charge | Constant Current 1C5A
Constant Voltage 4.2V
0.01 C5A cut-off | Charge time : Approx 2.5h |
| 9 | Fast discharge | Constant current 1 C5A
end voltage 3.0 V | |
| 10 | Maximum Continuous
Charge Current | 1 C5A | |
| 11 | Maximum Continuous
Discharge Current | 1.5 C5A | |
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H.
Be Cell |
| Discharge: -20~60℃ |
| 13 | Storage Temperature
Range | Less than 1 year: -20~25℃ | 60±25%R.H.
at the shipment state |
| less than 3 months: -20~40℃ |
| 14 | Weight | Approx :43g | Bare Cell |
| 15 | Cell Dimension | Length: Max.65.5mm | Initial Dimension |
| Width: Max.34.5mm |
| Thickness: Max. 6.2mm |
Our Service
Support customer analyze product project of battery and issue the suitable design
Provide professional accessories for the battery including of the pcb ntc and more
Shipping/delivery information for samples ans mass product
One year guarantee, all life maintain promise.
24 hours feedback speed by email FB SKYPY LINKEDIN WhatsappOur Service
FAQ
Q1: How do I get free sample?
A1: You can get 2 pcs single cell free samples and shipiing fee charge by buyer , Generally we don't provide free sample for pack , but we can return sample cost when the buyer plant a bulk order.
Q2: How should I pay?
A2: You can pay via T/T,L/C at sight, PayPal,
100% T/T in advance for samples.
For large quantities, 30% T/T in advance as soon as order confirmed and the balance before shipping via T/T or L/C etc.
Q3: What is your package looks like? Can I have the customized package?

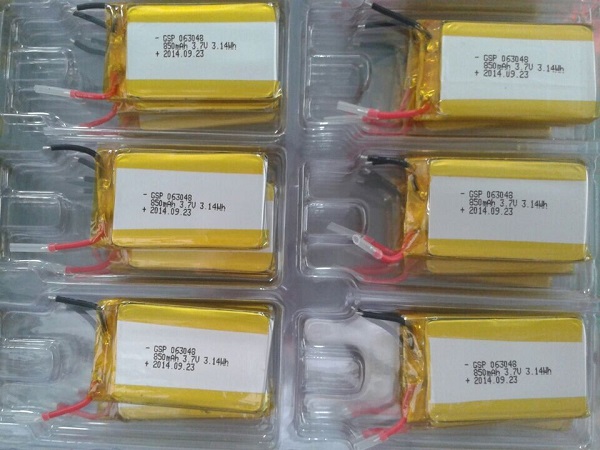

A3: OEM or ODM are accepted ,Normally the package similar as below
Q4: What is delivery time if we place an order?
A4:we can deliver goods within 3 -5 working days for small orders which the battery have stock,
20-30 days for mass product which the battery have not stock.
5: Are your factory or trading company?
A5: Proffesional Lipo battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients around globe cover the lithium-ion lifepo4 polymer lithium battery cell and pack
Q6: Where are your company's major markets?
A6: Our company focus on high quality lipo batteries, targetting on North Amercia, Europe, Korea and Japan Canada markets.
Pictures:

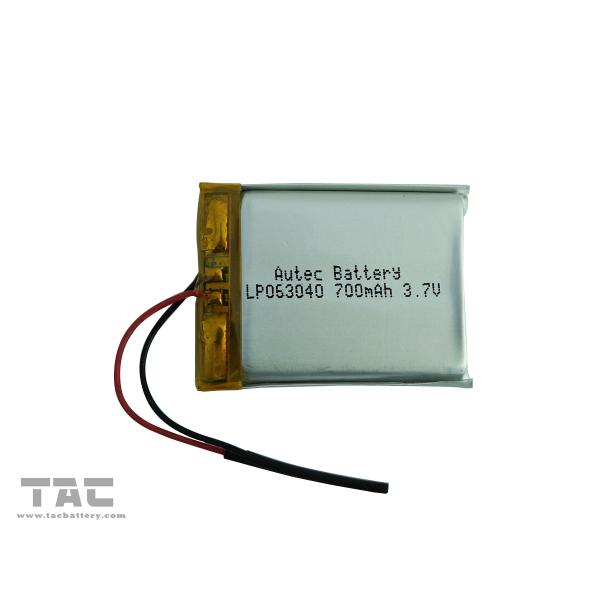

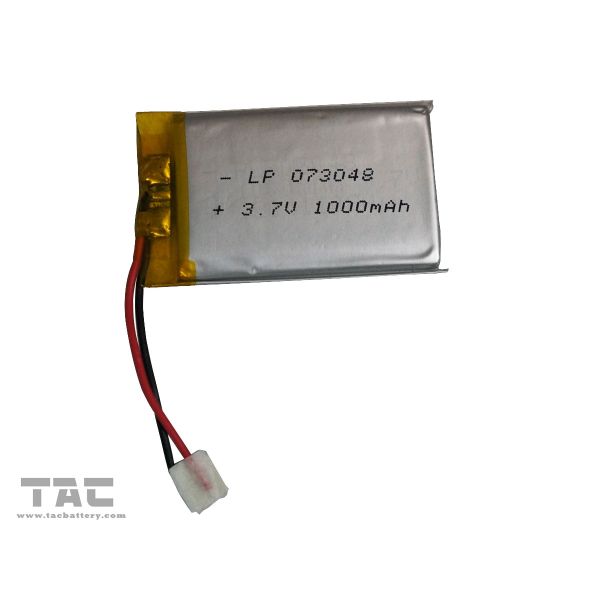

Rechargeable Polymer Lithium Ion Battery cells
We also have any other available model:
| Model | Nominal Voltage (V) | Typical Cap. | Dimension(mm) |
| (mm) | Thickness | Width | Height |
| 073496DHP | 3.7 | 2100 | 7.8 | 34 | 96 |
| LP0567100 | 3.7 | 3400 | 4.8 | 67 | 100 |
| LP066166 | 3.7 | 2750 | 6.1 | 61 | 66 |
| LP555376 | 3.7 | 2300 | 5.6 | 53 | 76 |
| LP085065 | 3.7 | 2600 | 7.8 | 50 | 65 |
| LP085080 | 3.7 | 3400 | 8 | 50 | 80 |
| LP0845131 | 3.7 | 5100 | 7.5 | 45 | 131 |
| LP0831134 | 3.7 | 4000 | 8.1 | 31 | 132 |
| LP55100100 | 3.7 | 5600 | 5.5 | 100 | 100 |
| LP605590 | 3.7 | 3400 | 6 | 55 | 90 |
| LP9051109 | 3.7 | 5500 | 9 | 51 | 109 |
| LP9551119 | 3.7 | 6800 | 9.5 | 51 | 119 |
| *LP7044125 | 3.7 | 4200 | 7 | 44 | 125 |
| *LP7545135 | 3.7 | 4500 | 7.5 | 45 | 135 |
| LP704374 | 3.7 | 2200 | 7 | 43 | 74 |
| LP854374 | 3.7 | 3000 | 8.5 | 43 | 74 |
